MindMap Diagram Family

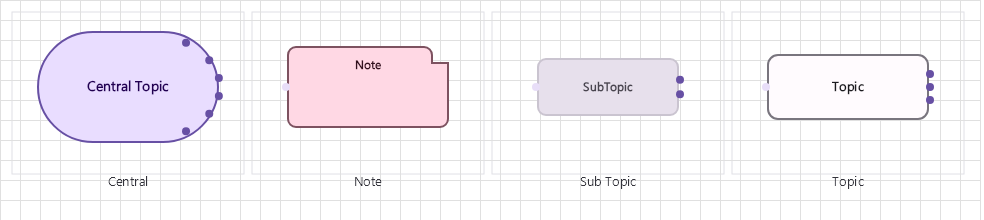

Mind map family: central topic, topics, sub-topics and notes

Overview
Node Types
Connection Points
Connection Conventions
Usage Example

Overview

Base Control: MindMapControl : MaterialControl
Namespace: Beep.Skia.MindMap

The MindMapControl is the root control for this diagram family. It inherits MaterialControl and provides shared port management, styling, and template methods for all nodes in the family.

This family contains 4 node types.

Node Types

Node Class	Shape	Description
`CentralNode`	Circle/oval (large)	Central idea/node. Root of the mind map.
`TopicNode`	Rounded rectangle	First-level topic branching from central node.
`SubTopicNode`	Rounded rectangle (smaller)	Second-level subtopic. Supports unlimited nesting.
`NoteNode`	Callout/sticky note	Annotation or detail note attached to any node.

CentralNode

Central idea/node. Root of the mind map.

Shape	Circle/oval (large)
Input Ports	0
Output Ports	8 (radial)

TopicNode

First-level topic branching from central node.

Shape	Rounded rectangle
Input Ports	1 (center-facing)
Output Ports	4 (radial)

SubTopicNode

Second-level subtopic. Supports unlimited nesting.

Shape	Rounded rectangle (smaller)
Input Ports	1
Output Ports	4

NoteNode

Annotation or detail note attached to any node.

Shape	Callout/sticky note
Input Ports	1
Output Ports	0

Connection Points

Every node in this family exposes connection points (ports) for linking to other nodes. Port positions are computed lazily by LayoutPorts(), which runs when MarkPortsDirty() flags the layout as stale after a move or resize.

Node Class	Input Ports	Output Ports	Extra
`CentralNode`	0	8 (radial)	—
`TopicNode`	1 (center-facing)	4 (radial)	—
`SubTopicNode`	1	4	—
`NoteNode`	1	0	—

Connection Conventions

When building diagrams with this family, follow these conventions:

Central node always at origin (0,0 relative to control)
Topics radiate outward from center
Lines use curved routing for organic feel
Colors typically change per depth level

Usage Example

Complete example showing creation, node placement, and connection:

C# Example

var mm = new MindMapControl
{
    X = 50, Y = 50,
    Width = 600, Height = 400
};
drawingManager.AddComponent(mm);

var central = new CentralNode
{
    X = 300, Y = 200,
    Title = "Product Strategy"
};
var topic = new TopicNode
{
    X = 200, Y = 100,
    Title = "Marketing"
};
var subtopic = new SubTopicNode
{
    X = 100, Y = 50,
    Title = "Social Media"
};

drawingManager.AddComponent(central);
drawingManager.AddComponent(topic);
drawingManager.AddComponent(subtopic);

drawingManager.ConnectComponents(central, topic);
drawingManager.ConnectComponents(topic, subtopic);

Collapse and Expand

MindMapVisibility.Apply(components, lines) recomputes visibility from each node's IsCollapsed flag: descendants of a collapsed node and their connecting lines are hidden, everything else is restored. It returns how many components and lines changed, which hosts use to request a redraw only when needed:

var root = drawingManager.GetComponents().OfType<CentralNode>().First();
root.IsCollapsed = true;

int changed = MindMapVisibility.Apply(
    drawingManager.GetComponents().ToList(),
    drawingManager.GetLines());

if (changed > 0)
    drawingManager.RequestRedraw();
